set voordeel

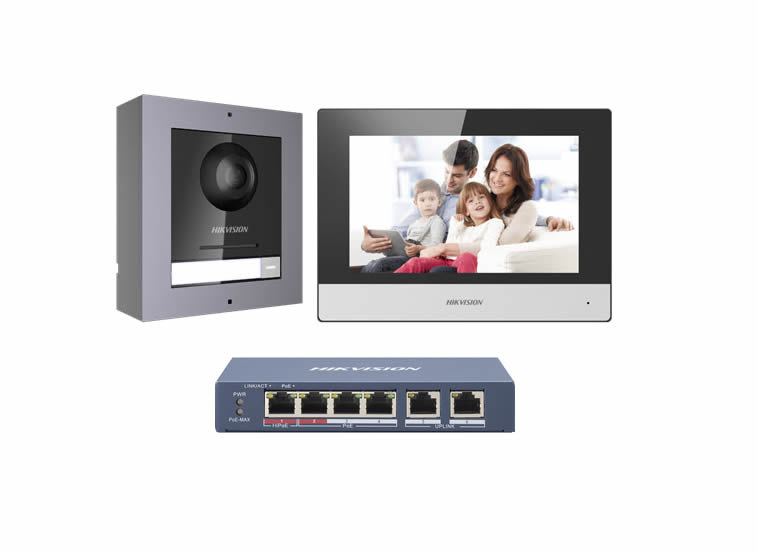

Complete Hikvision 2mp tweede generatie intercomsysteem (wifi monitor + buitenpost + PoE switch + gratis frame)


Bestaande uit:

1x Hikvision DS-KD8003-IME1 deurbel (12v of PoE)
1x Hikvision DS-KD-ACW1 – opbouwmodule
1x Hikvision DS-KH6320-WTE1  7″ kleuren monitor met PoE
1x Hikvision DS-3E0106HP-E PoE-switch (4+2 poorten)

Bekijk HIER de brochure

uit voorraad leverbaar

Hikvision DS-KD8003-IME1 – Video Intercom Module Door Station

  • 2 MP HD video intercom function
  • Access control function
  • Noise suppression and echo cancellation
  • H.264 video compression
  • Low illumination
  • Tampering alarm supported
  • Fisheye camera with IR supplement light
  • Supports sub-modules’ access (max. 8)
  • Nametag customization
  • Easy to and extend
  • keuze uit in- of opbouwframe

DS-KH6320-WTE1 Hikvision 7″ kleuren monitor met PoE en WIFI

Operation System: Embedded Linux Operation System
Memory: 128MB
Display Parameters
Display Screen: 7-Inch Colorful TFT LCD
Display Resolution: 1024 × 600
Operation Method: Capacitive touch screen
Audio Parameters
Audio Input: Built-in Omnidirectional Microphone
Audio Output: Built-in Loudspeaker
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Quality: Noise Suppression and Echo Cancellation
Network Parameters
Network Protocol: TCP/IP, SIP, RTSP/WIFI
Device Interfaces
TF Card (micro SD card): Max to 32 G, SD 2.0 or lower version
Power Supply: IEEE802.3af standard PoE, 12 VDC/1A
Power Consumption: ≤6W
Working Temperature: -10° C to + 55° C (14° F to 131° F)
Working Humidity: 10% to 90%
Dimensions(L × W × H): 200 mm × 140 mm × 15.1 mm (7.9″ ×5.5″ × 0.6″)
