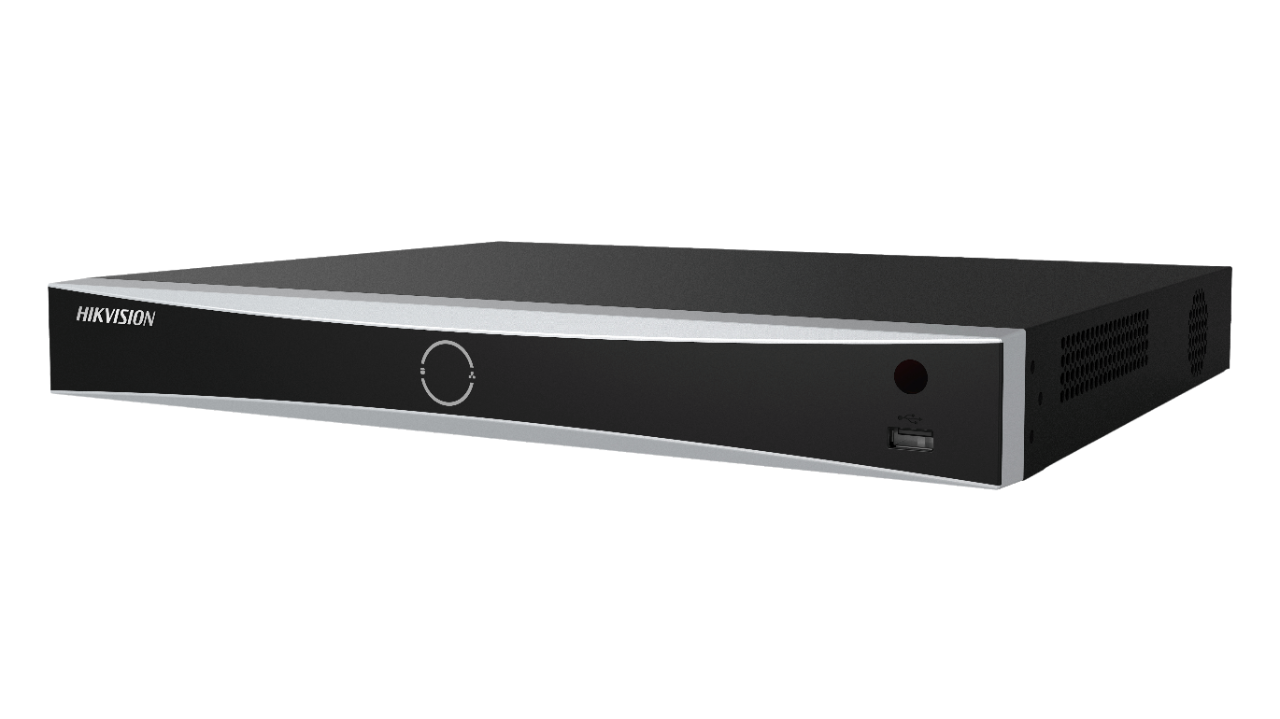

Hikvision DS-7716NXI-I4/16P/4S 16x PoE/IP AcuSense recorder

 845,00

  • Valse alarmen filter voor 4 kanalen met gedragsdetectie (AcuSense techniek)
  • 256/200 Mbps bit rate invoer/uitvoer(tot 16 camera’s)
  • Tot 12MP resolutie opname / live beelden
  • H.265+/H.265/H.264+/H.264 videocompressie
  • 12-ch 1080P decoderingsvermogen
  • 4 Sata poorten voor harde schijven tot 8TB per schijf
  • HDMI output voor een 4K resolutie


Levertijd van dit product is ongeveer 5 werkdagen, bel ons voor actuele informatie: 06-44421112


Perimeter Protection

  • Human/Vehicle Analysis: False alarm filtering for 4-ch behavior (line crossing and intrusion) detection for 2 MP, 3 MP, and 4 MP network camera

Video And Audio

  • IP Video Input: 16-ch
  • HDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,4K resolution is only available for HDMI.,
  • VGA Output: HDMI,VGA
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Incoming Bandwidth: 256 Mbps/200 Mbps
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

  • Decoding Format: H.265+,H.265,H.264+,H.264
  • Decoding Capability: 12-ch @ 1080p
  • Synchronous Playback: 16-ch
  • Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/,DCIF/2CIF/CIF/QCIF,

Network

  • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

  • Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ≤ 200W
  • Standard: IEEE 802.3 af/at

RAID

  • RAID Type: No

Auxiliary Interface

  • SATA: 4
  • ESATA: 1 eSATA interface
  • Capacity: Up to 8 TB capacity for each HDD
  • Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
  • USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out: 16/4

General

  • Power Supply: 100 to 240 VAC,≤ 300 W
  • Consumption: ≤ 30 W
  • Working Temperature: -10° C to +55° C (+14° F to +131° F)
  • Working Humidity: 10 to 90 %
  • Chassis: 1.5U chassis
  • Dimension (W × D × H): 445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
  • Weight: ≤ 5 kg (11 lb)
