DS-3E0528HP-E

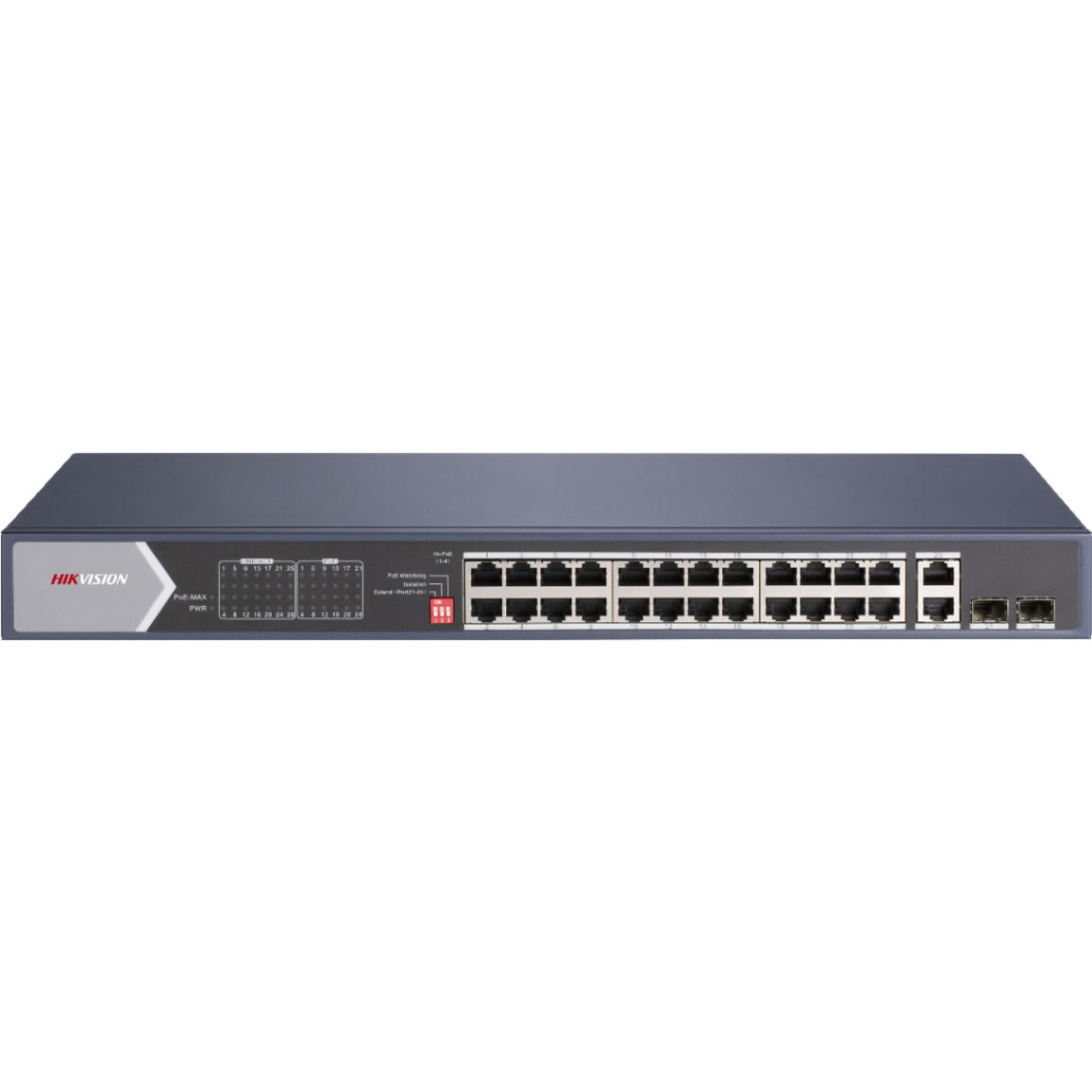

Hikvision DS-3E0528HP-E Pro Series, 24 Port Unmanaged, 2-Layer PoE Switch, 20 × Gigabit
 647,35  575,00 Toevoegen aan winkelwagen
Aanbieding!

Hikvision DS-3E0528HP-E Pro Series, 24 Port Unmanaged, 2-Layer PoE Switch, 20 × Gigabit

 575,00

-11%

op werkdagen vóór 15.00 uur besteld, dezelfde dag verzonden

✅ voor 15.00 uur besteld, dezelfde dag verzonden
✅ levering uit eigen voorraad
✅ áltijd gratis support via Teamviewer
✅ uw bestelling ophalen kan 7 dagen per week, ook ‘s avonds
✅ 2 jaar garantie
✅ wij scoren een échte 9.8 bij onze klanten

24 Port Gigabit Unmanaged POE Switch

    • 20 × gigabit PoE ports, 4 × gigabit Hi-PoE ports, 2 × gigabit RJ45 ports, and 2 × gigabit fiber optical ports.
    • IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
    • IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
    • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
    • 6 KV surge protection for PoE ports.
    • Up to 300 m long-range transmission.
    • PoE watchdog to auto detect and restart the cameras that do not respond.
    • Port isolation to improve network security.
    • Gigabit network access design.
    • Wire-speed forwarding.
    • Store-and-forward switching.
    • Solid high-strength metal shell.

Network Parameters

  • Ports: 20 × Gigabit PoE ports, 4 × Gigabit Hi-PoE ports, 2 × Gigabit RJ45 ports, and 2 × Gigabit fiber optical ports
  • Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
  • Working Mode: Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
  • Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
  • Forwarding Mode: Store-and-forward switching
  • MAC Address Table: 8 K
  • Switching Capacity: 56 Gbps
  • Internal Cache: 4.1 Mbits
  • Packet Forwarding Rate: 41.664 Mpps
  • Ports For Long-Distance Transmission: Ports 21 to 24

PoE Power Supply

  • PoE Standard

    Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

    Ports 5 to 24: IEEE 802.3af, IEEE 802.3at

  • PoE Power Pin

    Ports 1 to 4 and 19 to 24: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

    Ports 5 to 18: End-span: 1/2(-), 3/6(+)

  • PoE PortPorts 1 to 24
  • Max. Port Power

    Ports 1 to 4: 90 W

    Ports 5 to 24: 30 W

  • PoE Power Budget370 W

Dialing Function

  • Long RangePorts: 21 to 24: up to 300 m, and the speed rate of the port is 10 Mbps.
  • Port Isolation: Ports 1 to 24: port isolation mode to improve network security.
  • PoE Watchdog: Ports 1 to 24: auto detect and restart the cameras that do not respond.

General

  • Dimensions (W × H × D): 440 mm × 220.8 mm × 44 mm (17.32” × 8.69” × 1.73”)
  • Shell: Metal material
  • Gross Weight: 3.950 kg (8.71 lb)
  • Net Weight: 2.98 kg (6.57 lb)
  • Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage Humidity: 5% to 95% (no condensation)
  • Power Supply: 100 to 240 VAC, 50/60Hz, Max. 6.5 A
  • Power Consumption In Idle: < 30 W
  • Max. Power Consumption: 400 W

Approval

  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
