Aanbieding!

Hikvision DS-2CD2387G2P-LSU/SL, 8 megapixel 180 graden Panorama ColorVu – 2x 4mm lens (zwart)

 295,00

-39%

✅ op werkdagen voor 15.00 uur besteld, dezelfde dag verzonden
✅ levering uit eigen voorraad
✅ áltijd gratis support via Teamviewer
✅ uw bestelling ophalen kan 7 dagen per week, ook ‘s avonds
✅ 2 jaar garantie
✅ wij scoren een échte 9.8 bij onze klanten

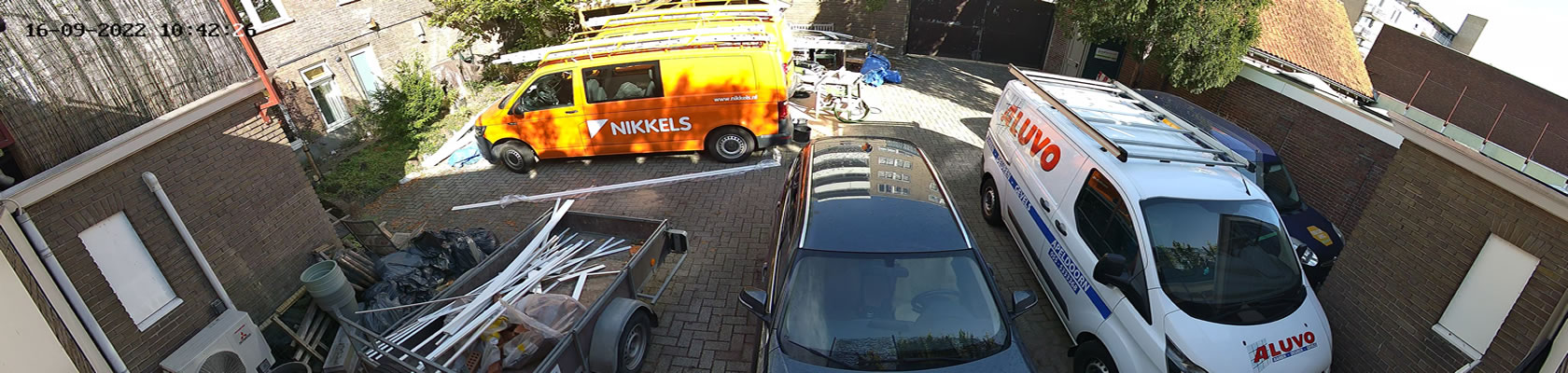

Deze 180 graden, 8 megapixel ColorVu combineert al het goede in één camera. Een dubbele lens (2x 4mm) met een beeldbreedte van 180 graden en een gevoeligheid van 0.0005 lux @ F1.0, een microfoon, audio output en stroboscoop verlichting.

Alhoewel de foto doet vermoeden dat het een enorme camera is, het tegendeel is waar. De camera is zelfs klein te noemen!

Er is een haakse muurbeugel beschikbaar, de DS-1473ZJ-155.

Ondanks dat de camera over 2 lenzen beschikt, hoeft deze slechts verbonden te worden met één UTP kabel. Hierbij is het echter van groot belang om minimaal een 8 poorts recorder te gebruiken, dit in verband met de bandbreedte – data verbruik. De recorder gebruikt ook slechts 1 kanaal!


Levertijd van dit product is ongeveer 5 werkdagen, bel ons voor actuele informatie: 026 383 5445


Camera

  • Image Sensor: 2 × 1/1.8″ Progressive Scan CMOS
  • Max. Resolution: 5120 × 1440
  • Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time: 1/3 s to 1/100,000 s
  • Angle Adjustment: Pan: -30° to 30°,tilt: -75° to 75°

Lens

  • Lens Type: Fixed focal lens, Dual lens: 4 mm
  • Focal Length & FOV: 4 mm, horizontal FOV: 180°, vertical FOV: 44°
  • Lens Mount: M16
  • Iris Type: Fixed
  • Aperture: F1.0
  • Depth Of Field: 3.6 m to ∞

DORI

  • DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

  • Supplement Light Type: White Light
  • Supplement Light Range: Up to 30 m
  • Smart Supplement Light: Yes

Video

  • Main Stream

    When WDR is On:

    50 Hz: 12.5 fps (5120 × 1440)

    60 Hz: 15 fps (5120 × 1440)

    When WDR is Off:

    50 Hz: 20 fps (5120 × 1440)

    60 Hz: 20 fps (5120 × 1440)

  • Sub-Stream

    When WDR is On:

    50 Hz: 12.5 fps (1920 × 536, 960 × 272)

    60 Hz: 15 fps (1920 × 536, 960 × 272)

    When WDR is Off:

    50 Hz: 20 fps (1920 × 536, 960 × 272)

    60 Hz: 20 fps (1920 × 536, 960 × 272)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile,Main Profile,High Profile
  • H.265 Type: Main Profile
  • Bit Rate Control: CBR,VBR
  • Scalable Video Coding (SVC): H.264 and H.265 encoding
  • Region Of Interest (ROI): 1 fixed region(s) for main stream

Audio

  • Audio Type: Mono sound
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering: Yes

Network

  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Simultaneous Live View: Up to 6 channels
  • API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • Client: iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11 ,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

    Local service: Chrome 57.0+, Firefox 52.0+


  • Image Parameters Switch: Yes
  • Image Settings: saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch: Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR): 130 dB
  • SNR: ≥ 52 dB
  • Image Enhancement: BLC,HLC,3D DNR

Interface

  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
  • Built-In Microphone: Yes
  • Built-In Speaker: Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
  • Audio

    1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

    1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
  • Reset Key: Yes

Event

  • Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
  • Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
  • Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

Deep Learning Function

  • Perimeter Protection: Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
  • General
  • Power

    12 VDC ± 25%, 0.79 A, max. 9.5 W,Ø5.5 mm coaxial power plug,

    PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W

  • Material: Base: metal, cover: metal
  • Dimension: Ø155 mm × 155.3 mm (Ø6.1 × 6.1″)”
  • Package Dimension: 230 mm × 230 mm × 230 mm (9″ × 9″ × 9″)
  • Approx. 1110 g (2.4 lb.)
  • With Package Weight: Approx. 1900 g (4.2 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Anti-flicker, heartbeat, password reset via email, password protection, one-key reset
  • Flashing Light: Yes

Approval

  • EMC

    FCC: 47 CFR Part 15, Subpart B,

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7

  • Safety

    UL: UL 62368-1,

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006

  • Protection: IP67: IEC 60529-2013
